Challenges in Industry :

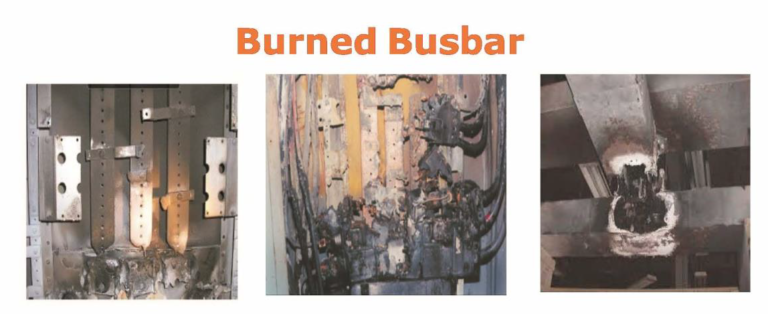

• Failure in Power distribution system due to Temperature can result in loss of productivity and even fire or explosion

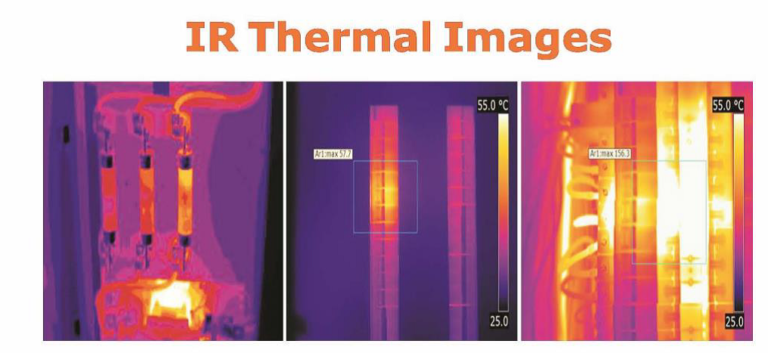

• Generation of heat is an indication of loss of energy and wastage of power
• Heat also contributes in shortening life of an equipment
• Since contact resistance measurement would be dangerous it is necessary to use isolated sensors

Solution :

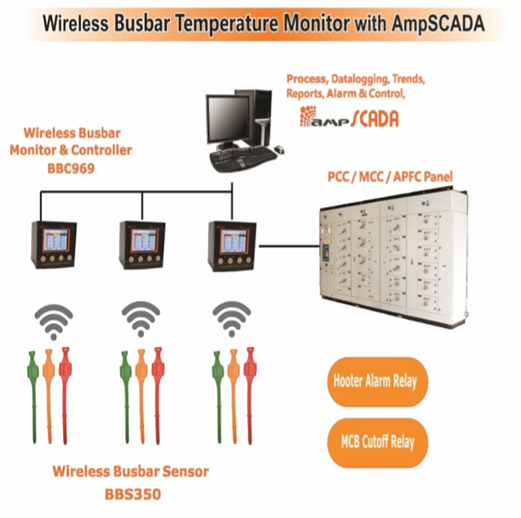

WIRELESS BUSBAR TEMPERATURE MONITOR SYSTEM :

• WBTMS integrates online temperature measurement, data collection, data analysis and control function
• WBTMS consists of :
  • Sensors ( Wireless Temperature transmitters – BBS350)
  • Receiver (Wireless Signal Receiving & Monitoring Unit – BBC969)
  • Software (Processing, Alarming & Reporting Software – AmpSCADA ** **Optional

• Bus Bar Sensors :
  • Digital Sensors
  • Measures temperature in wide range : -40 deg C to 125 deg C
  • Transmission Interval : Every 30 sec to 300 sec
  • Transmission Range : Upto 15-20 mtrs (Can be increased upto 4 kms with additional hardware)
• Receiver :
  • Receiver BBC969 is installed in the control panel
  • One unit monitors 9 sensors
  • Alarm Mode : Buzzer, Relay for Hooter & Relay for CB
  • Depending on number of sensors, a series of BBC969 controller can connect in daisy chain on Modbus
• Software (Optional) :
  • Processes the sensors’s information from Modbus
  • Records in textual log file
  • Display Alerts, Trend Charts & generate customize reports
  • Admin User can set ALerts or generate reports

Application Area :

1. Input & Output bus bar of Switchgear
2. Circuit breaker contact
3. Bearing & Winding of the motor
4. High temperature air outlets
5. Power distribution Transformers

Solutions :

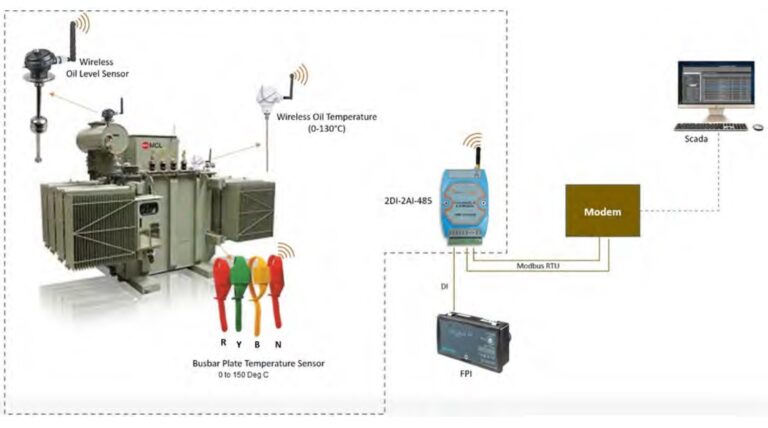

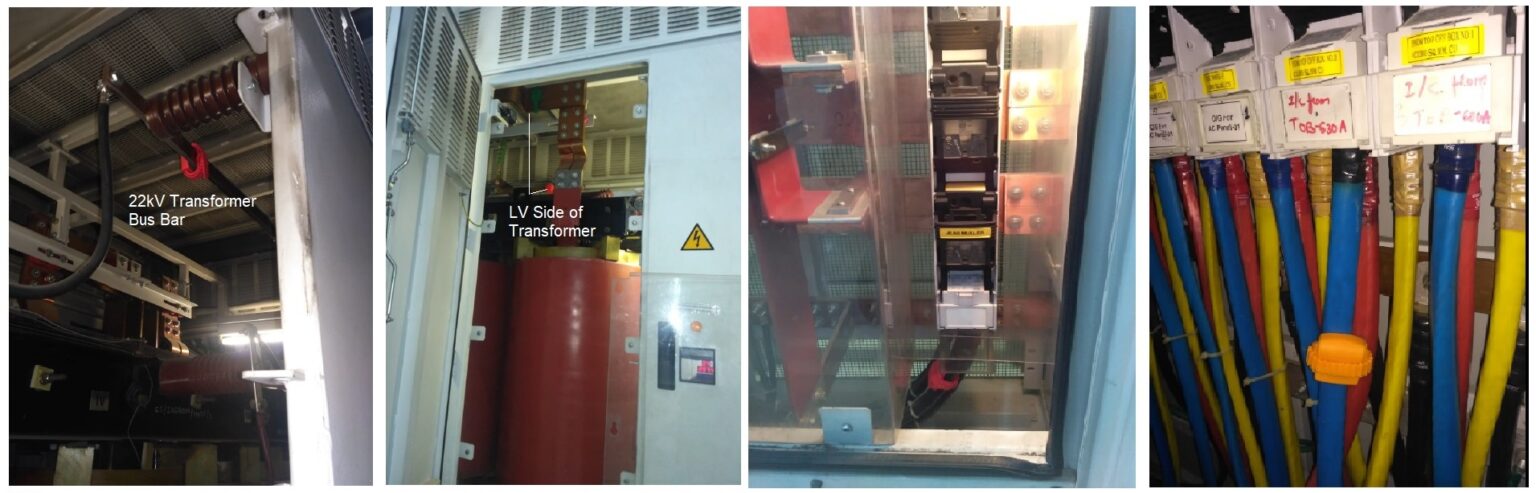

Monitoring of Transformer Oil level, Oil Temperature & Bus Bar Temperature :

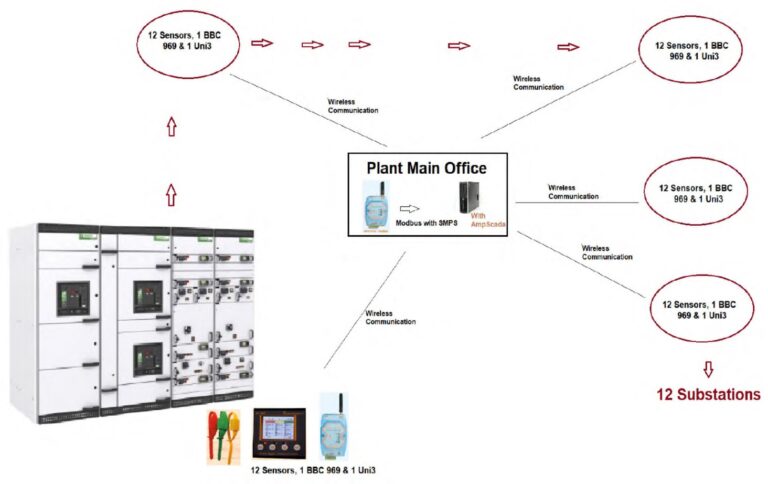

Monitoring of LV Panel Bus Bar Temperature in 12 Substations remotely connected over Wireless Communication :
